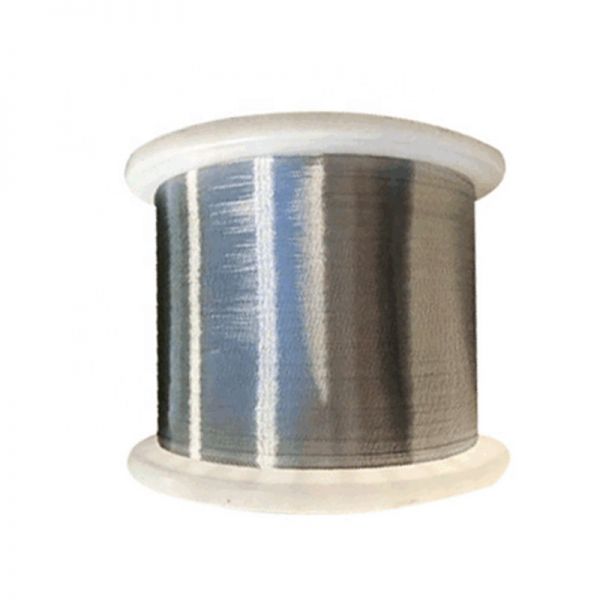

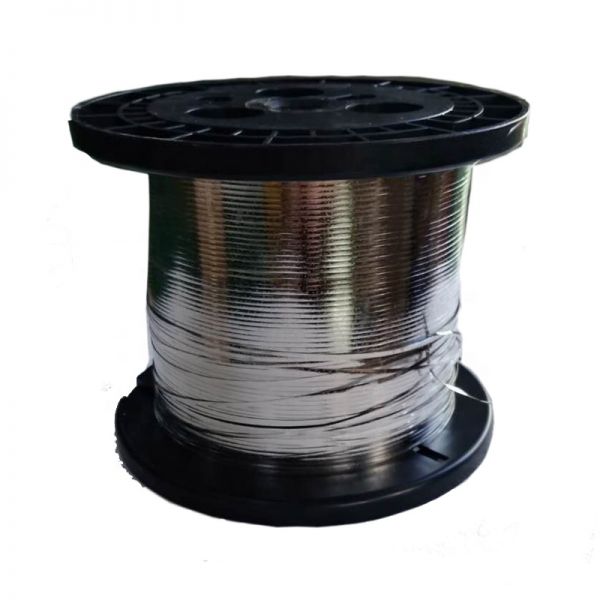

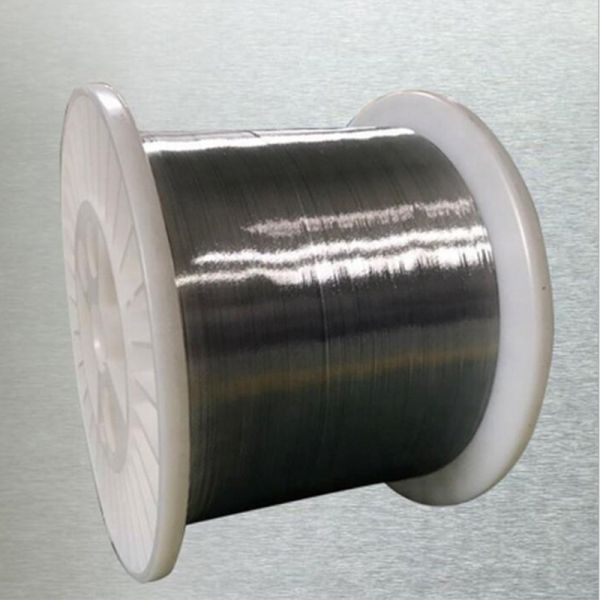

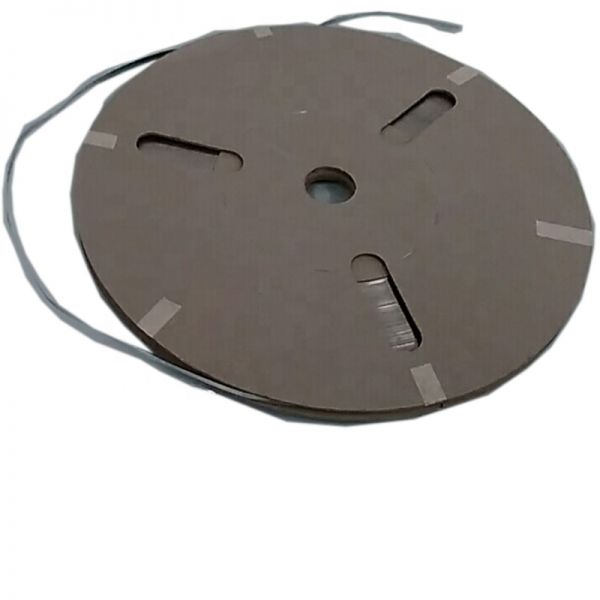

Tabbing Wire

Tabbing Wire

0.18*2.0mm,0.2*1.5mm, 0.2*1.6mm


1. Base Copper Parameter
Base copper trademarkOxygen-free copper C1022
Copper purityCu≥99.97%
Electrical conductivity≥100% IACS
Resistivity≤0.01724 Ω·m m2/m
2. Coating Thickness and Composition(can customize according to clients' technical requirement)
Coating Alloy TypeCoating CompositionCoating Thickness each side (mm)Coating Thickness Tolerance (mm)
LeadedSn60% Pb40%0.01-0.04±0.01
Sn62% Pb36% Ag2%0.01-0.04±0.01
Lead-freeSn97% Ag3%0.01-0.04±0.01
3. Mechanical Characters for Commen Spool Product
Elongation≥15%
Tensile strength≥150MPa
Side camberL≤8mm/1000mm
4. Physical Dimension and Tolerance of Common Spool Product
Thickness range0.045-0.35mm (can customize according to clients' technical requirement)
Thickness tolerance±0.02mm
Width range1.0-2.5mm (can customize according to clients' technical requirement)
Width tolerance±0.08mm
Common Specification of Tabbing Ribbon(mm) (Spool Package)
0.18×2.00.22×2.00.24×2.00.27×2.0
0.20×1.50.23×1.50.25×1.50.30×1.5
0.20×1.60.23×1.60.25×1.60.30×1.6
0.2×1.80.23×1.80.25×1.80.30×1.8
0.2×2.00.23×2.00.25×2.00.30×2.0

5. Storage Conditions and Shelf Life
Tinned copper ribbon should be stored in dry and ventilated room, where should be no acid, alkail, or harmful gas and the indoor relative humidity should not exceed 60%. Place it horizontally while stacking and avoid the carton extrusion&vertical placement, meanwhile, the stacking quantity of same products not exceed five layers or 1 ton. The shelf life can be up to six months since the production date.



Product making crafts process

0.2*1.5mm Spooling Packing Tabbing Wire/PV Ribbon for Machine Automatic Soldering Solar Cells



  • TABBING RIBBON is a kind of fine high-carbon steel wire of high strength, high hardness, and high wear resistance. It is used as the carrier for multi-wire sawing to cut super-hard crystalline materials, such as silicon, gallium arsenide, indium phosphide, silicon carbide and crystal.

    Product advantages:
    . Less kerf loss;
    . Higher efficiency, capacity and precision;
    . Lower processing cost.
